$795.00 USD
$795.00 USD

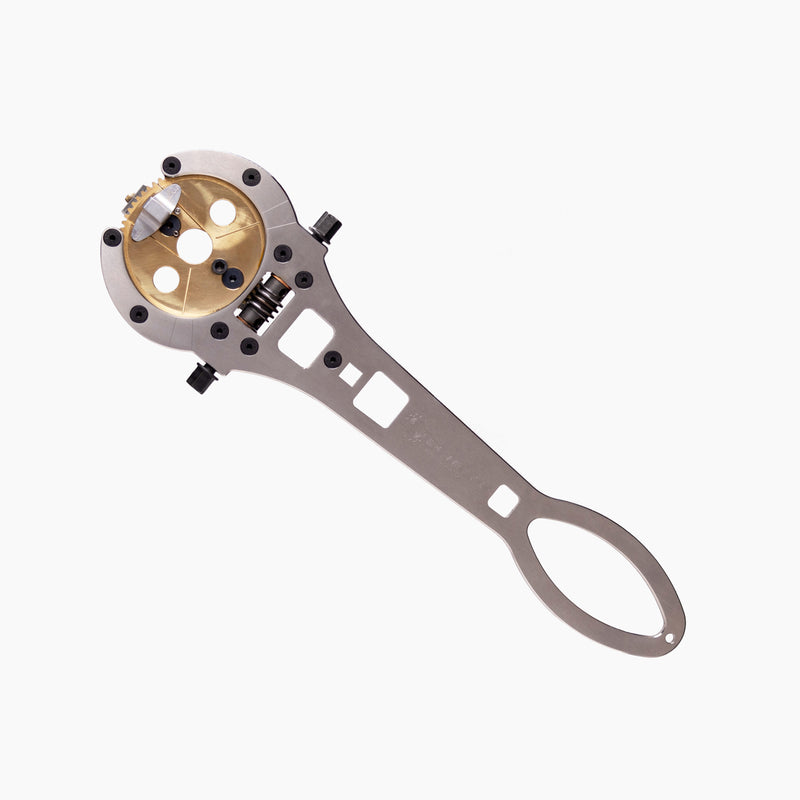

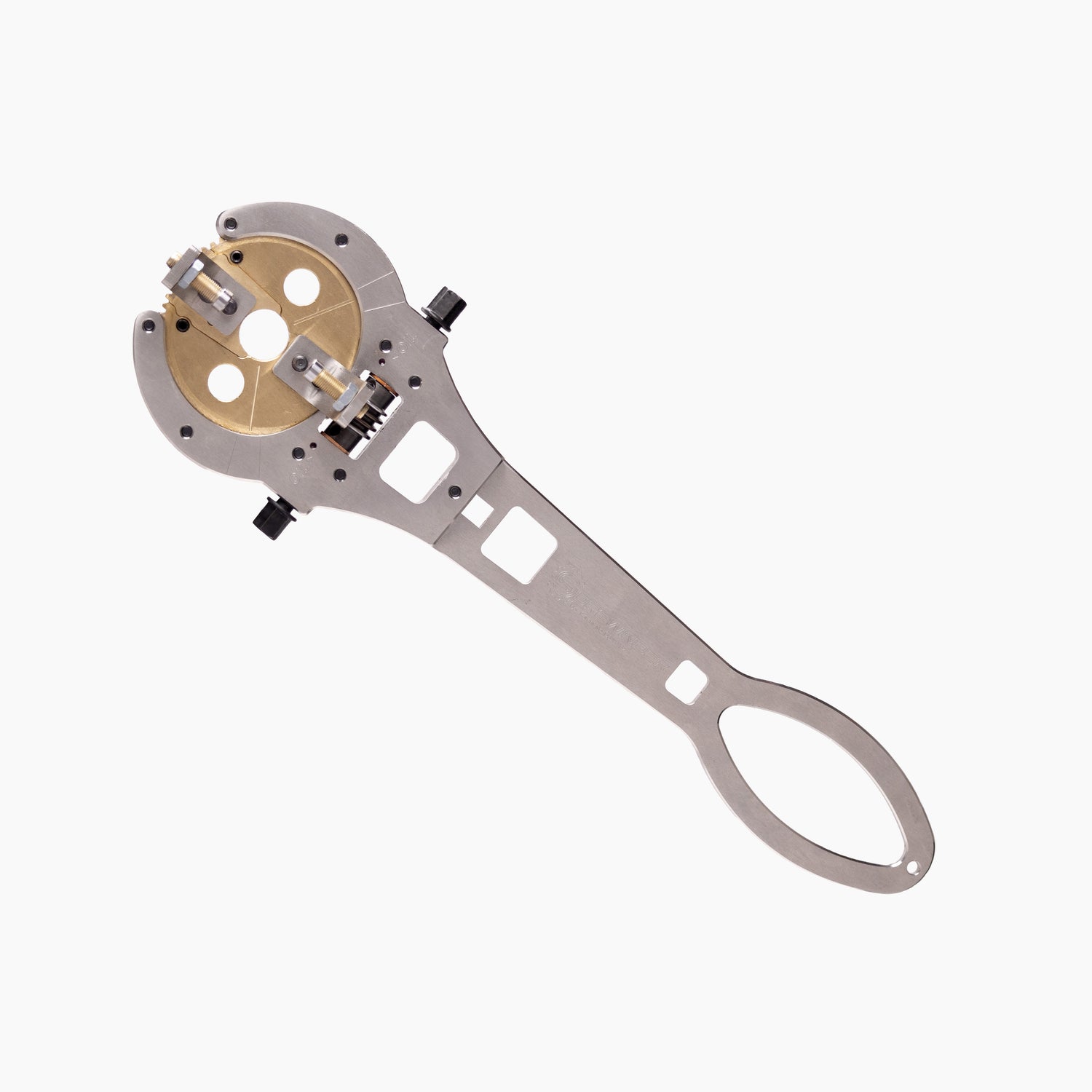

The original industry leading torsion spring winding tool designed by aerospace engineers and proven in the field for over 10 years to wind and unwind springs faster and safer.

*Availability: Ships April 29th

Technical Specs
  • Designed for residential and light commercial applications
  • Wind springs up to 127 IPPT (8 turns) for a total of 1,020 in-lbs or 85 ft-lbs of torque. This is equivalent to .362" wire x 3.75" ID x 35" long with 8 turns .
  • The Surewinder  can wind a .362 x 3.75 ID X 35 in long spring 8 turns with a Milwaukee M18 FUEL 2804 Li-ion cordless 1/2" drill (7 turns in high gear, 1 turn in low gear) which is rated for 1,200 in-lbs of torque in drill (not hammer) mode.  NO IMPACTS.
  • 10 turns in under a minute with 1,000 RPM drill.
  • Needs 2.5 inches clearance from shaft to wall
  • Can be used on up to 4.5 inch spring diameters, 1 inch shaft diameters.
  • Can be wound at 2,500 RPM.
  • Weighs 7.5 lbs,   dimensions:   21” long x 6” wide x 3.5” deep
  • Made from 304 Stainless steel and high temper bronze for wear resistance.  Aerospace grade fasteners.
Health & Safety Benefits
  • Worm gear technology prevents the spring from back-driving the tool
  • Removes dangers inherent in winding bars
  • Lowers worker compensation claims and lost work time
  • Minimize fatigue and resulting safety incidents
  • Reduces rotator cuff injury
Cost Savings
  • Wind and unwind springs up to 10 times faster than winding bars
  • If you pay your techs $60K per year and your work comp rate is 4.5%, insurance agents say you could get a 20% premium reduction and pay for the tools for all techs in one year
  • Lowers worker compensation claims and lost work time
  • Increase revenue by completing more jobs in a week due to reduced fatigue
  • Warranty: our tools have been in the field with no problems for 10 years.  One year warranty for defects in workmanship and materials from date of purchase from Surewinder LLC
